St. Edmunds Church

St. Edmunds Church

CONTRACT:
St Edmund’s Church, Dudley

EQUIPMENT:
Tube & Fittings + Alu Beams + Monarflex Sheeting + C.I. Sheeting

DESIGN BRIEF:
ACCESS: To provide drawings for a sheeted access scaffold to all faces of the church tower for repair works, with a C.I. sheeting roof for weather protection. Rear and rear side elevations were to be supported by beams to the top of the tower and tied front to back through windows. 1.5m-1.9m bays and 2.1m lifts. Loaded to 2.00kN/m² with wind and snow loads to roof / side sheeting.

Request A Quote CTA - Long

Drawings of the St Edmunds church scaffolding design.
Drawings of the St Edmunds church scaffolding design.
Drawings of the St Edmunds church scaffolding design.

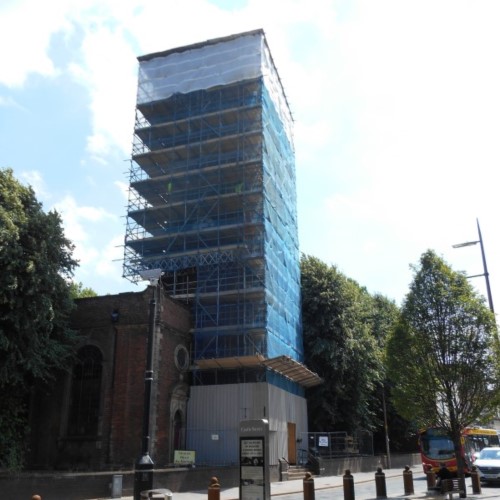

Scaffolding Design, St Edmund's Church
Scaffolding Design, St Edmund's Church
